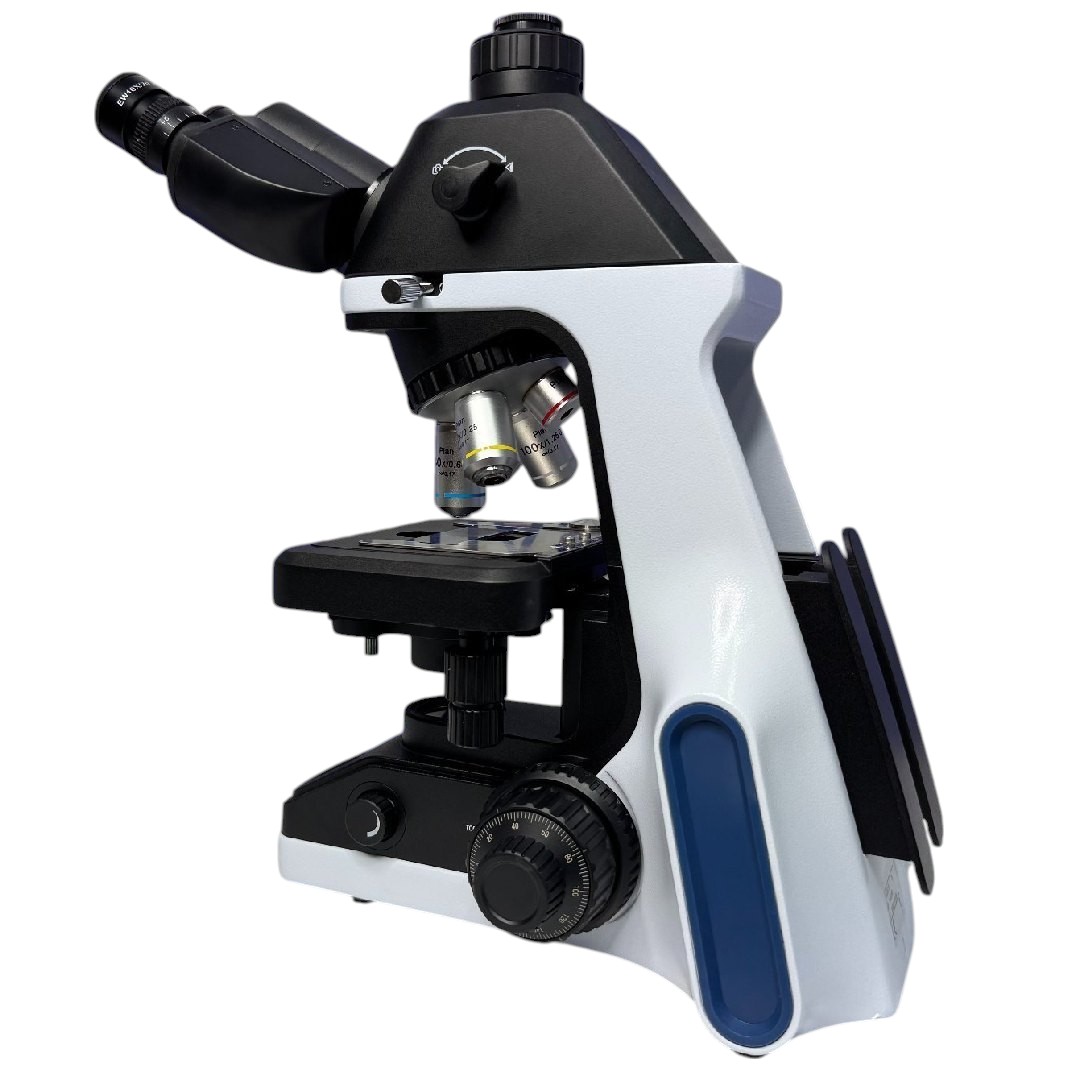

ECO-300 Research Trinocular Microscope with Coded Display

Magnification
40x
Usage/Application
Laboratory
Light Source
LED
Microscope Type
Research Trinocular Microscope
Illumination
3.5W LED Light (Up To 100,000 Working hours) with Intensity Controller.
BRANDS
QUASMO
WARRANTY
1 YEARS
Country of Origin
Made in India
Minimum Order Quantity
1
Category:

Description

QUASMO – ECO-300 – Research Trinocular Microscope with Coded Display |

  • Optical System: Infinity Optical System.
  • Stand: Single Mould Sturdy Aluminum Die-cast Stand (Anti-Rust) Body. Viewing Head: Siedentopf Trinocular Head 30° Inclined 360° Rotatable, IPD 48-75mm With Diopter Adjustment.
  • Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing. Eyepieces: Wide Field 10x, F.O.V 20mm With Diopter Adjustment, Antifungal & Anti-reflection Coated.
  • Nosepiece: Inward Quadruple Revolving Nosepiece With Coded Feature with Click Stops Mechanism.
  • Objectives: Infinity Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
  • Mechanical Stage: Double Plate Stage 180mm X 130mm, With Specimen Holder, With Vernier Calibrations, Moving Range: 74 mm X 30 Mm.
  • Focusing: Coaxial Coarse And Fine Focusing. With Fine Adjustment Scale Value 0.002mm.
  • Condenser: Fixed Abbe Condenser N.A. 1.25, Iris Diaphragm With Frosted White Filter. Anti Fungal And Anti Reflection Coated.
  • Illumination: 3.5W LED Light (Up To 100,000 Working hours) with Intensity Controller.
  • Display: LCD Display Magnification, Time Sleeping, Brightness Indication And Lock ,etc.
  • Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
  • Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box.

ECO-300 Research Trinocular Microscope with Coded Display
