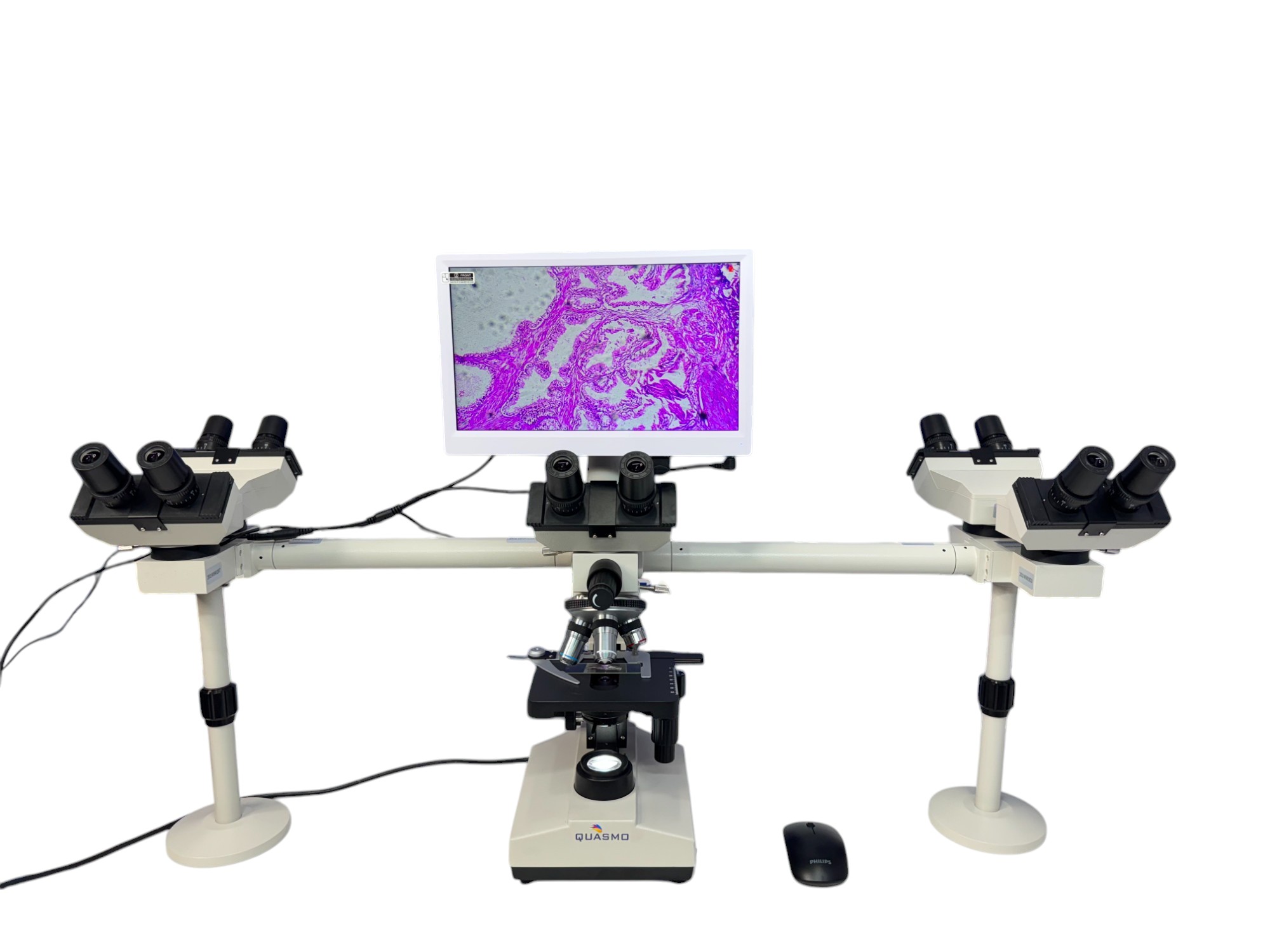

PH-777 PENTA HEAD MICROSCOPE

Magnification
1000x
Model Name/Number
PH-777 PENTA HEAD MICROSCOPE
Is It Portable
Non Portable
Power
110v-240v
Brands
QUASMO
Objectives
Achromatic Objectives
Mechanical Stage
140mm X 140mm
Condenser
Movable Abbe Condenser
Country of Origin
Made in India
Minimum Order Quantity
1
Category:

Description

PH-777 | PENTA HEAD MICROSCOPE

  • System: Finite Optical System
  • Stand: Aluminium Die-cast Stand (Anti-Rust) Body
  • Viewing Head: Trinocular/Binocular Main Head 45° Inclined, IPD 48-75mm, Binocular Head For Co-Observers
  • Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing
  • Eyepieces: Wide Field 10x, F.O.V 18mm With +/-5 Diopteric Adjustment, Antifungal & Anti-reflection Coated
  • Nosepiece: Quadruple Revolving Nosepiece With Click Stops Mechanism And Rubber Grip
  • Objectives: Achromatic Objectives 4x N.A 0.10, 10x N.A 0.25, 40x N.A 0.65 (SL), 100x N.A 1.25 (SL), Oil
  • Magnification: 40x To 1000x
  • Middle Module: LED Pointer Cursor, Green Intensity Adjustable
  • Mechanical Stage: Ceramic-Coated Double Plate Graduated Stage Size 140mm X 140mm, X/Y Travel 75mm X 55mm, Scratch-resistant, Double Specimen Holder Clips
  • Focusing: Coaxial Coarse And Fine Knobs, Vertical Coarse Range 25mm, Fine Precision 1μm
  • Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti-Reflection With Aspheric Lens, Iris Diaphragm With Frosted White/Blue
  • Illumination: 5W LED Light (Up To 100,000 Working hours) with Intensity Controller
  • Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer
  • Packaging: Inner Thermocol/Styrofoam Packing And Outer Cardboard Box

PH-777 PENTA HEAD MICROSCOPE
