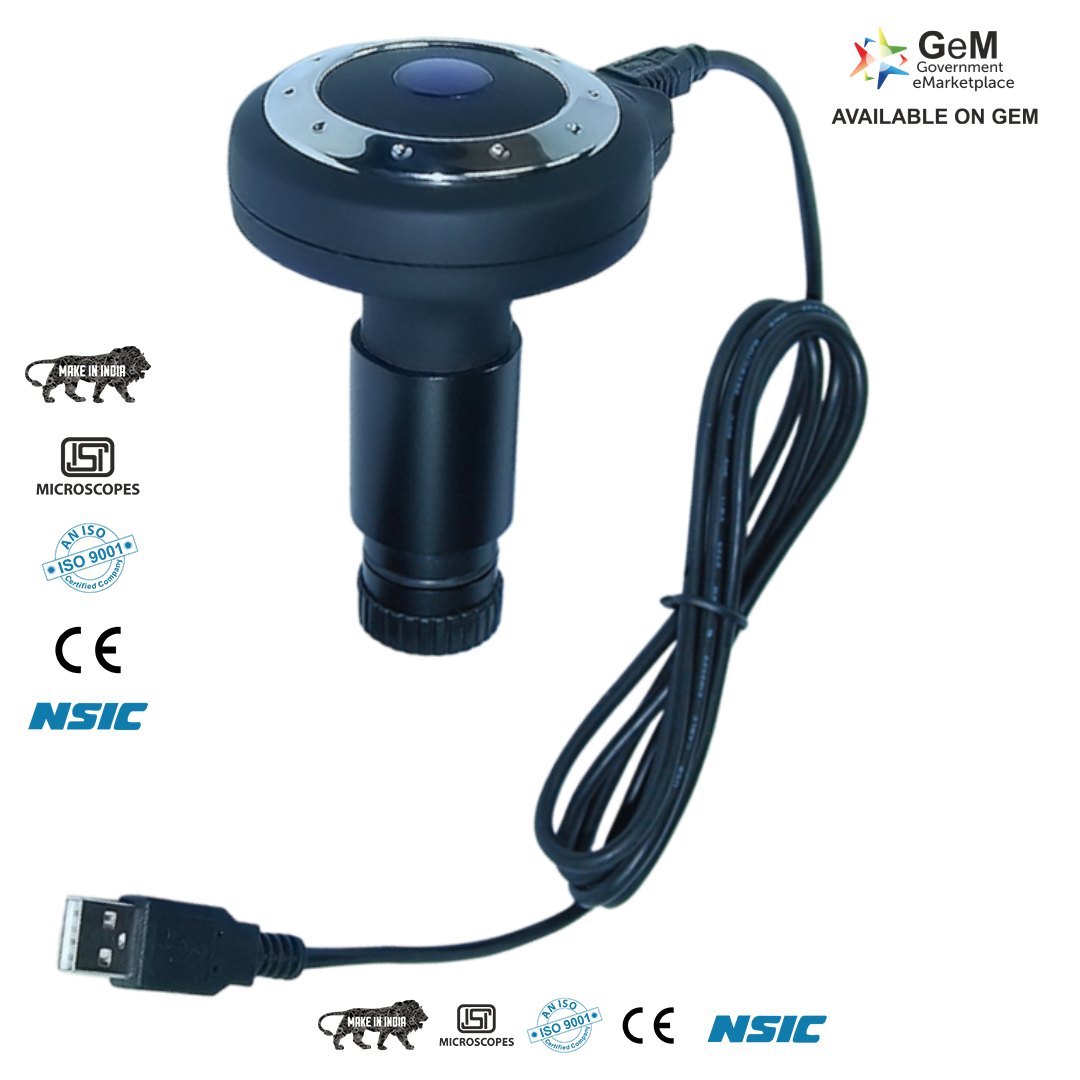

CAMERA EYEPIECE MVV-1300
Digital Eyepiece camera 1.3 MP, USB 2.0
Resolution: 1280*1024
Pixel Size: 5.2μm *5.2μm
Optical magnification: 10X
Image capture: Switch, setting, shoot, measure, full screen view.
Description
Microscope digital eyepiece camera quipped with relay lens and microscopy imaging software of Future Win Joe for scientific research
Digital Eyepiece camera 1.3 MP, USB 2.0
| Sensor Parameter: | 1/2″ 1.3MP CMOS |
| Resolution: | 1280*1024 |
| USB port: | USB 2.0, 480 MB /s |
| Frame Rate: | 16 f/s @ 1280*1024 |
| Preview Model : | 1280*1024, 640*480, 320*240 |
| Pixel Size: | 5.2μm *5.2μm |
| Sensitivity: | 1.8 V/lux-sec@550nm |
| Spectrum response: | 400nm—1000nm |
| Shutter Type: | White ERS(electronic rolling shutter) |
| Balance: | Auto |
| The Length of USB: | 1.5 meter |
| O/P compatibility: | Windows–XP2, 7 and 8 |
| Power supply: | USB port |
| Tube diameter: | 23.2 mm or 30.00mm |
| Connection: | Ocular tube or C-mount |
| Uniform focusing: | YES |
| Optical magnification: | 10X |
| Rate of field: | 1/3 |
| Matching lens: | Yes |
Function of software:
| mage file management: | set up, open up, save, lead in image file. |
| Image capture: | Switch, setting, shoot, measure, full screen view. |
| Image edit: | picture turn, zoom, cut, modify, email, print |
| Resolution of display: | 1280*1024 |
| Resolution of picture: | 1280*1024 |
| Resolution of video: | 1280*1024 |
| Weight of device: | 0.10ãŽ
|
