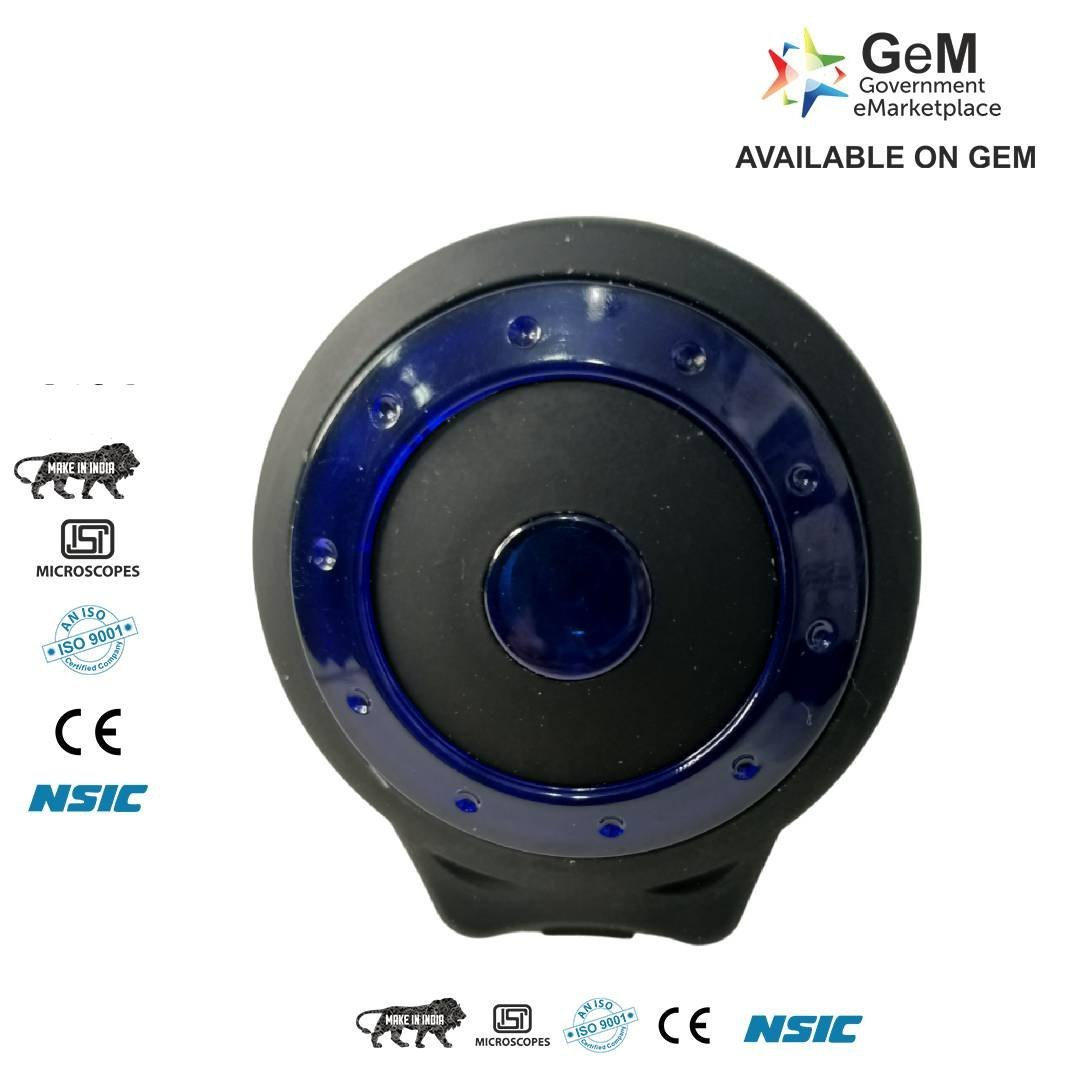

CAMERA EYEPIECE MVV-5000



Resolution: 2560*1944

Pixel Size: 2.2μm *2.2μm

Optical magnification: 10X

mage file management: set up, open up, save, lead in image file.

Description



Microscope digital eyepiece camera quipped with relay lens and microscopy imaging software of Future Win Joe for scientific research

Digital Eyepiece camera 5.0 MP, USB 2.0

Sensor Parameter: 1/2.5″ 5.0MP CMOS
Resolution: 2560*1944
USB port: USB 2.0
Frame Rate: 3.75fps for 5.0 MP
Preview Model : 2560*1944, 2048*1536,1280×1024 ,1024×768
Pixel Size: 2.2μm *2.2μm
Color Filter: RGB Bayer Pattern
White Balance: Auto
The Length of USB: 1.5 meter
O/P compatibility: Windows–XP2, 7 and 8
Power supply: USB port
Tube diameter: 23.2 mm or 30.00mm
Connection: Ocular tube or C-mount
Uniform focusing: YES
Optical magnification: 10X
Rate of field: 1/3
Matching lens: Yes



Function of software:

mage file management: set up, open up, save, lead in image file.
Image capture: Switch, setting, shoot, measure, full screen view.
Image edit: picture turn, zoom, cut, modify, email, print
Resolution of display:  2560*1944
Resolution of picture:  2560*1944
Resolution of video: 2560*1944
Weight of device: 0.10㎏
