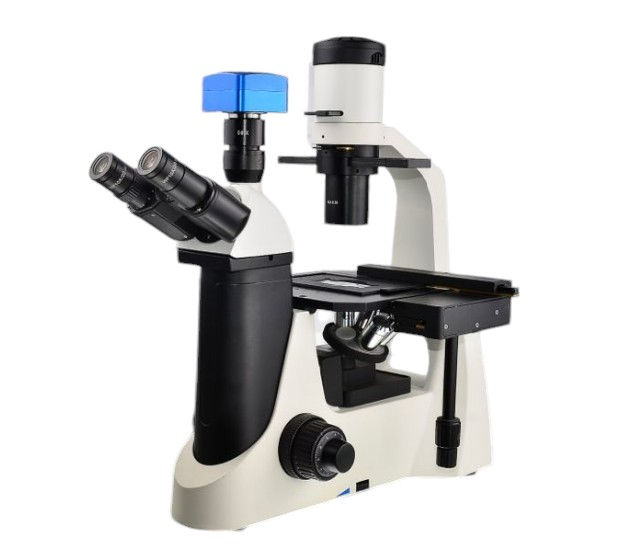

Inverted Tissue Culture Microscope PZQ-105
Observation Head: 45° inclined Binocular head
Stage: Plain stage 180X150mm with stage clips
Objectives: Achromatic 5x, 10x , ,LWD 20X & LWD 40x (SL)
Illumination: 6V 20 Watt Halogen
Description
SPECIFICATIONS:
| Observation Head: | 45° inclined Binocular head interchangeable with Monocular or Trinocular observation head. |
| Nosepiece: | Quadruple revolving turret nosepiece with positive accurate click stops. |
| Eyepieces: | WF 10x (paired) with eye guards. |
| Stage: | Oversize plain stage 180 x 150mm with 2 extension plates 150 x 65mm for large bottles and microfilter work. |
| Objectives: | Achromatic 5x, 10x, LWD-20x & LWD-40XSL. |
| Illumination: | The microscope is provided by a post-mounted high intensity of 6 volts 20 watts Halogen illuminator. |
