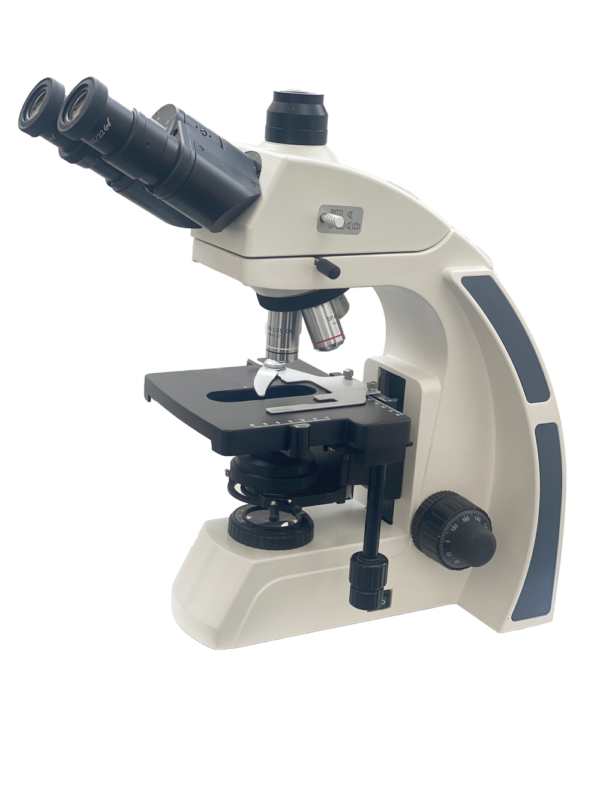

STAR-7 DELTA
Objectives: High Contrast Infinity corrected iQVST series Plan Achromatic objectives
Observation Head: Trinocular head inclined at 30°
Illumination: Q-LED 3.5W 3V illumination with variable control. Up to 100,000 hours of LED life
Description
SPECIFICATIONS:
| Optical System: | High Contrast Infinity corrected Optical System |
| Observation Head: | Binocular / Trinocular head inclined at 30° with
Inter-pupillary distance of 50-75mm with dioptric adjustment
|
| Nose-piece: | Inward, Quintuple revolving nose-piece ball
bearing type with proper click stops |
| Eyepieces: | Wide Field 10x eye-piece with 22mm F.O.V,
anti-fungal & anti-reflection hard coated |
| Mechanical Stage: | Rackless & Scrathless Double plate stage
size 180mm X160mm. X/Y travel range 75mm X 50mm.
|
| Division: | 0.1mm Low drive right side movement |
| Objectives: | High Contrast Infinity corrected iQVST series Plan
Achromatic objectives 4x (N.A. 0.10, W.D. 25mm), 10x (N.A. 0.25,W.D. 6.7mm),40x (SL, N.A. 0.65, W.D. 0.6mm) and 100x (SL, Oil, N.A. 1.25, W.D. 0.17mm) antifungal, anti-reflection hard coated
|
| Condenser: | Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm
with Frosted white filter, antifungal & antireflection coated. Rack and pinion movements on stainless steel guides
|
| Focusing Control: | Co-axial coarse and fine focusing on gear systems for
smooth operation. Fine adjustment 0.2mm / rotation with maximum 2 micron scale increment |
| Illumination: | Q-LED 3.5W 3V illumination with variable control.
Up to 100,000 hours of LED life
|
| Electronics: | Koehler Universal input 110V – 240V AC,
50/60 Hz
|
| Certifications: | BIS (ISI), ISO 9001, ISO 13485, Eu Ce
|
| Optional Attachment: | Monocular Head, iQVST series
DIN Infinity Plan objectives 20x, 60x SL,WF 15x,WF 20x, Pointers & Micrometer Reticules, Phase contrast, Polarizing, Fluorescence and Dark Field attachments, Digital USB Cameras (1.3MP,3MP, 5MP, 14MP) with in-built adaptors, Digital Cameras and DSLR Cameras with adaptors, Illumination System Halogen 6V 20W.
|
